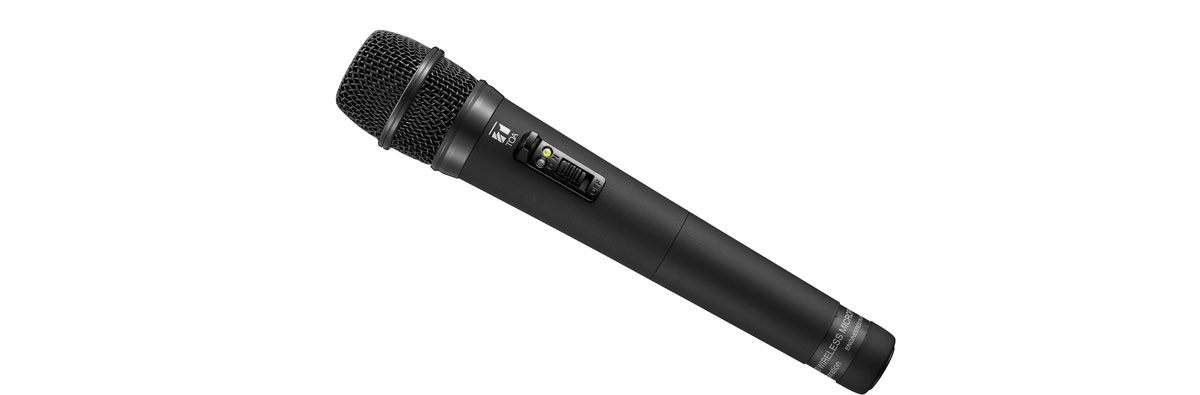

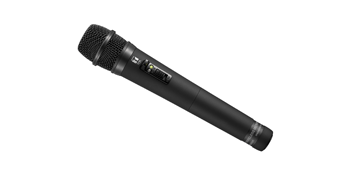

TOA Wireless Handheld Speech Microphone
- Key Features
-
- The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
- Microphone Element
Electret condenser microphone unit: Unidirectional - Modulation
Frequency modulation - Frequency response
576 - 937.5 MHz*, UHF - Channel Selectable
64 channels (the number of channels may differ from country to country) - RF Carrier Power
Less than 50 mW (Factory preset 10 mW ERP) - Tone Frequency
32.768 kHz - Oscillator
PLL synthesized - Maximum Input Level
126 dB SPL - Maximum Deviation
±40 kHz - Audio Frequency Response
100 Hz - 15 kHz - Dynamic Range
95 dB or more (with WT-5800) - Battery
WB-2000 rechargeable battery (option) or AA alkaline dry cell battery - Battery Life
Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used) - Indicator
Power/Battery lamps - Antenna
Built-in type - Operating Temperature
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery) - Operating Humidity
30 % to 85 %RH (no condensation) - Finish
Resin, coating - Dimensions
φ43.6 x 231.5 mm (φ1.72" × 9.11") - Weight
180 g (0.4 lb) (with battery)
